Leica high precision GPS

Using a Leica GG04 plus Smart Antenna and the Zeno Connect App for Android you can collect highly precise 3 dimensional GPS location data accurate to five decimal places. To set this up you must configure a location field in Flowfinity, download the Zeno Connect app from Leica and connect your external antenna to your mobile device.

Flowfinity - Leica high precision GPS

Example

An engineering firm requires high precision GPS data to be collected and submitted in work orders when surveying project sites. They deploy field workers with android devices and Leica Zeno GG04 plus Smart Antennas to record the data into their Flowfinity mobile application.

*Note – High precision GPS measurements in Flowfinity Actions are currently only compatible with Android devices.

Flowfinity - Leica high precision GPS

Instructions

  1. Customize the application that you would like to collect GPS location information, e.g. Work Orders.

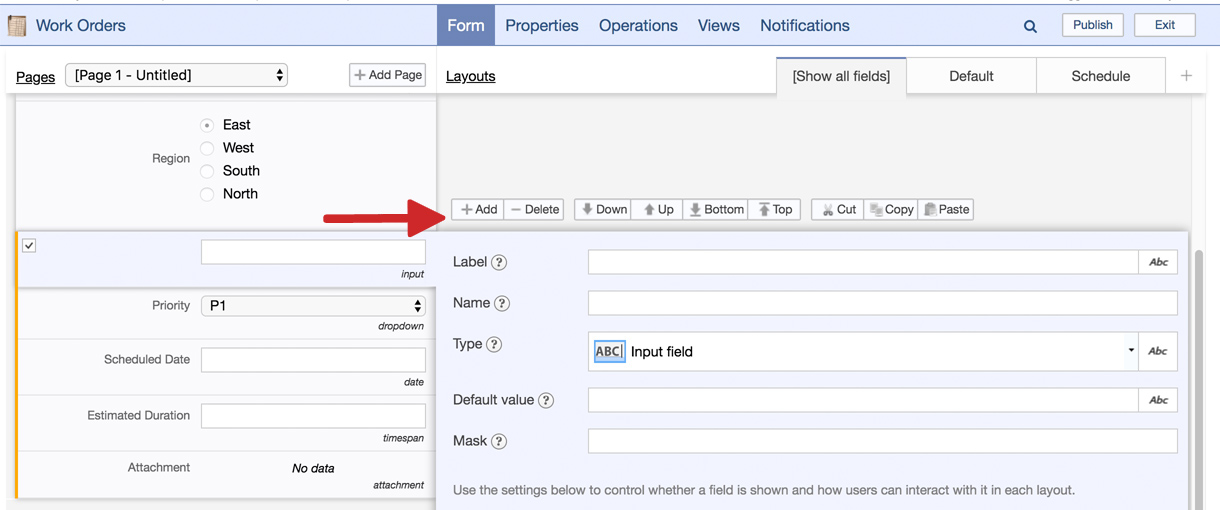

  2. Go in the Forms section and select where you would like to add the GPS location field. Click '+Add.'
    Flowfinity - Leica high precision GPS

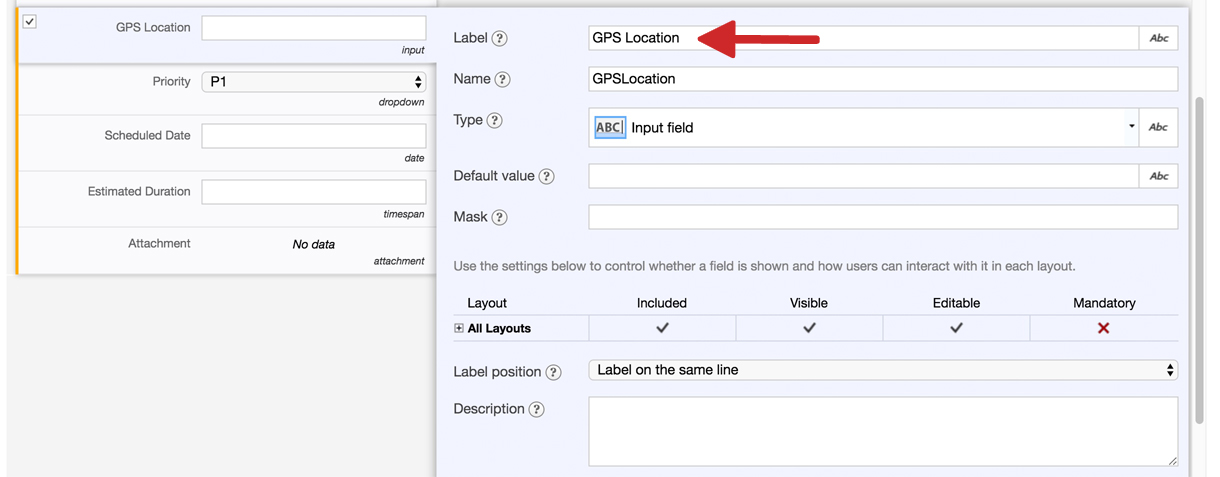

  3. Provide the field with a Label and Name e.g. 'GPS Location.'
    Flowfinity - Leica high precision GPS

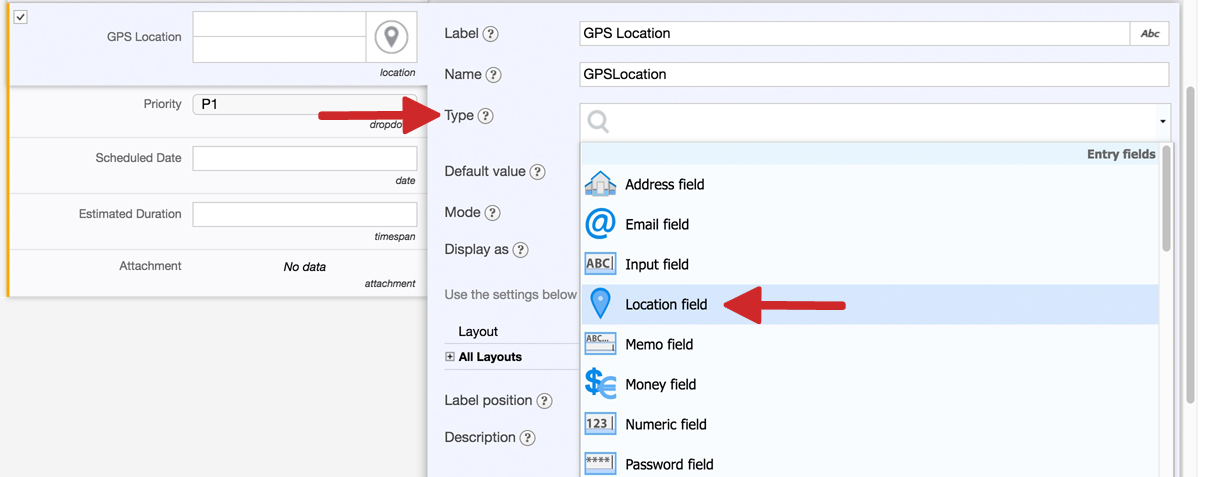

  4. Select 'Type' and 'Location Field' from the dropdown. Enter a 'Default value' if desired.
    Flowfinity - Leica high precision GPS

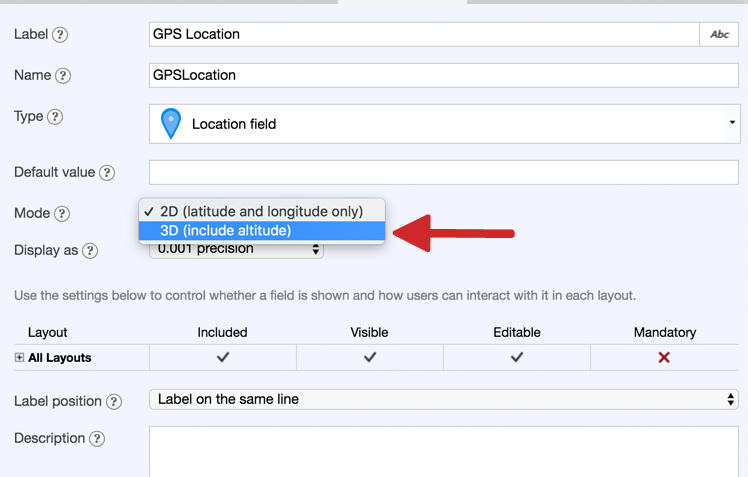

  5. Select 'Mode' as '3D (include altitude).'
    Flowfinity - Leica high precision GPS

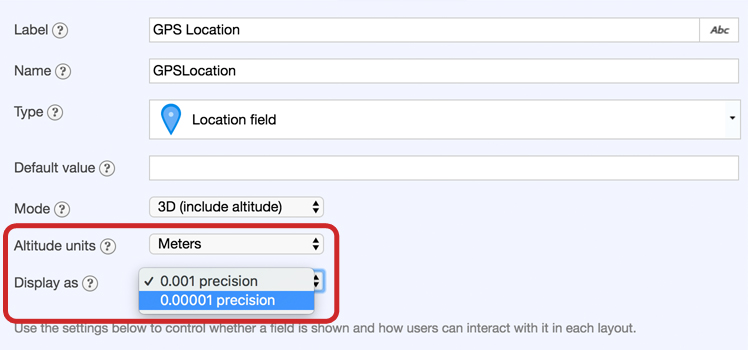

  6. Define the 'Altitude units' as 'Meters' or 'Feet' and set 'Display as' to '0.00001 precision.'
    *Note: If not using a high precision GPS unit do not increase the precision displayed as the data collected will not be accurate enough for the reading to be meaningful.
    Flowfinity - Leica high precision GPS

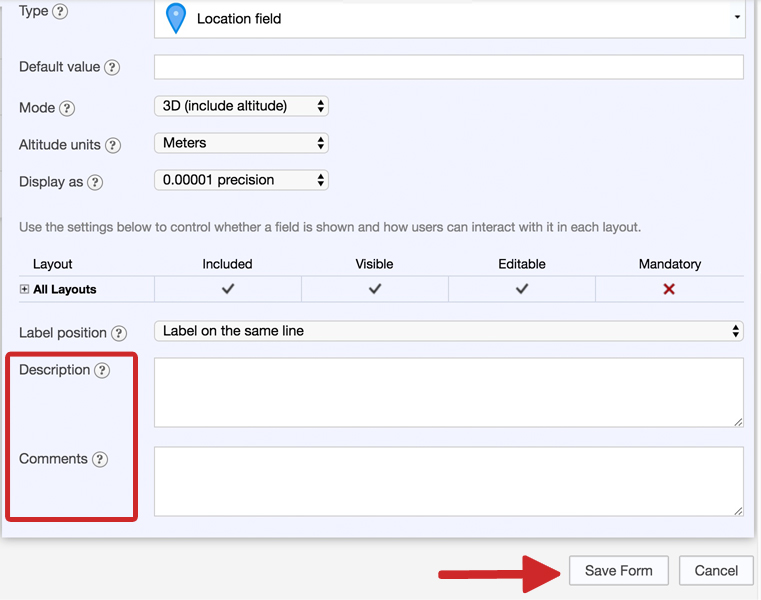

  7. Add a label description and internal design comments if required.
    Click 'Save Form' and publish your app. Your application is now ready to display high precision GPS data when provided by a compatible Leica smart antenna.
    Flowfinity - Leica high precision GPS

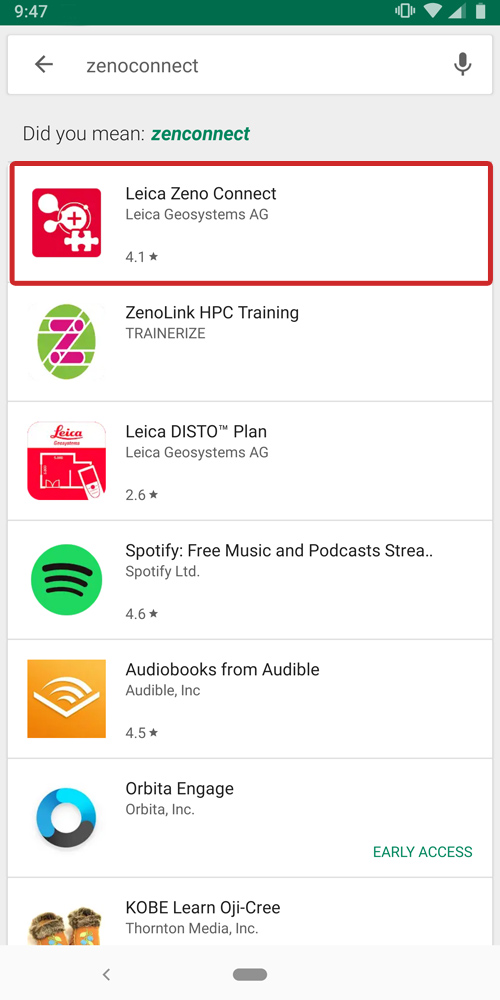

  8. On your Android mobile device, open the Google Play Store and search for the 'Leica Zeno Connect' app published by Leica Geosystems AG.
    Flowfinity - Leica high precision GPS

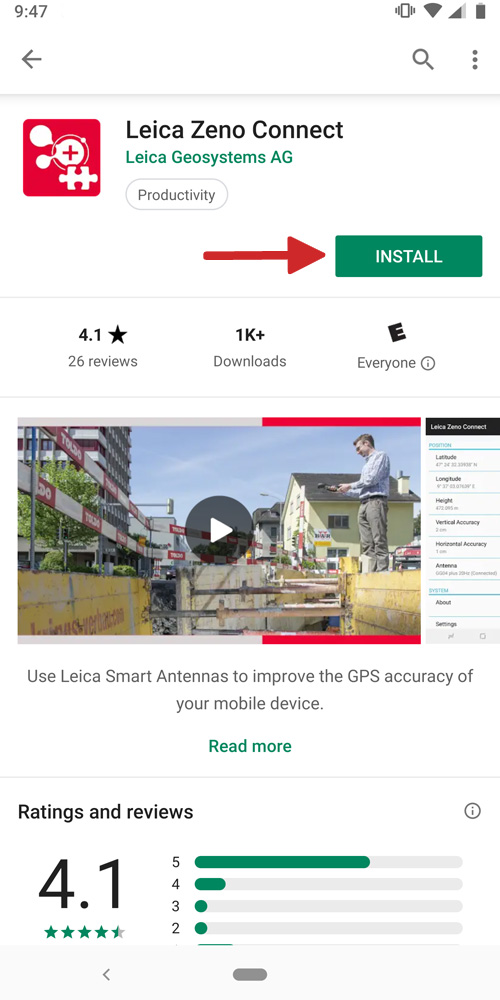

  9. Install the application.
    Flowfinity - Leica high precision GPS

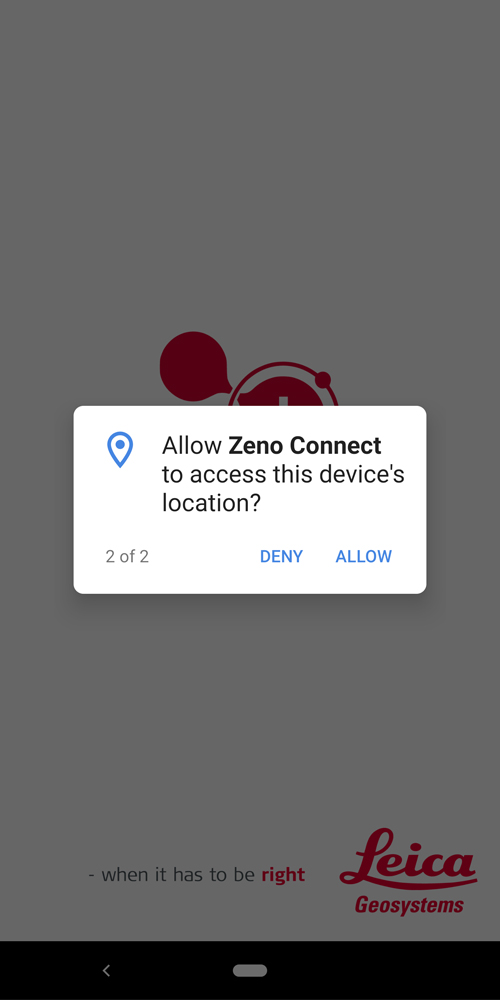

  10. Allow Zeno Connect to access your devices location.
    Flowfinity - Leica high precision GPS

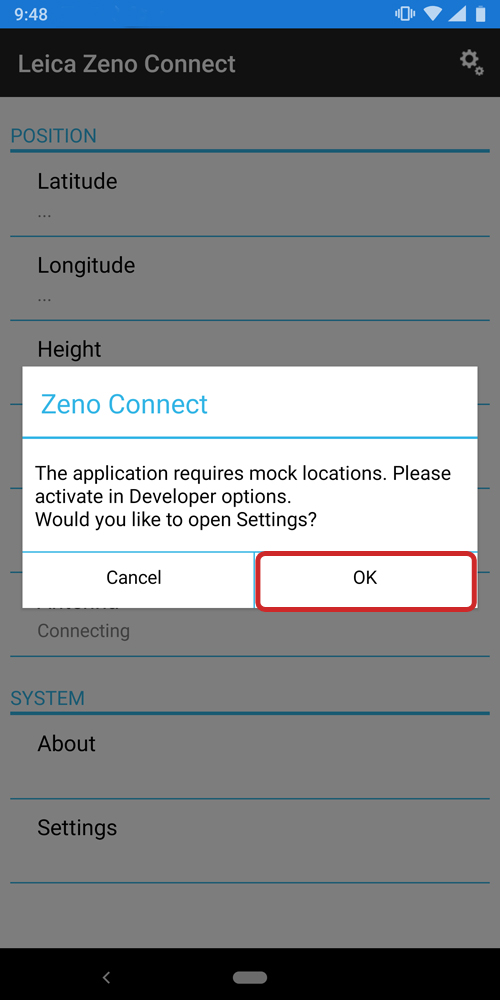

  11. Zeno Connect will require 'mock locations' to be activated in 'Developer options' on your device. Select 'OK' when promoted.
    Flowfinity - Leica high precision GPS

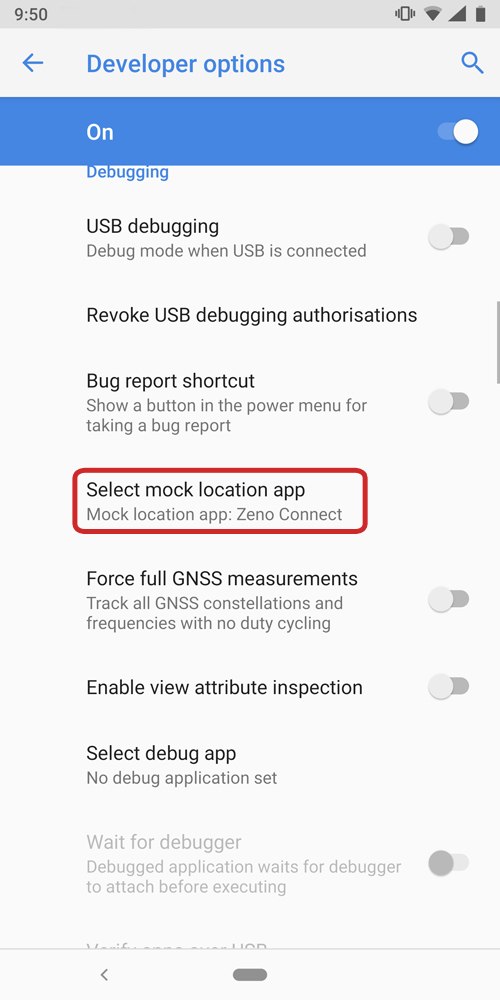

  12. From within 'Developer Options' set 'Mock location app' to 'Zeno Connect.'
    Flowfinity - Leica high precision GPS

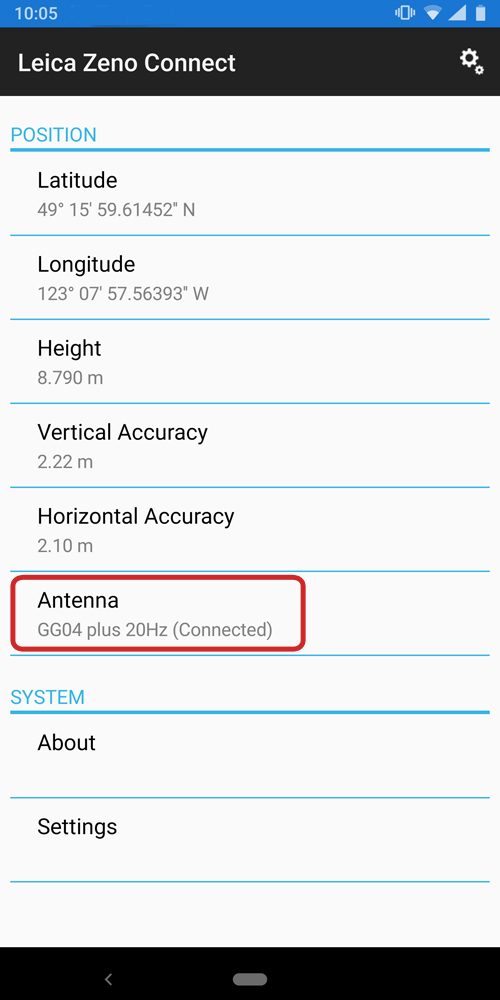

  13. Pair your Leica GPS Antenna with your Android Device via Bluetooth and open the Leica Zeno Connect app to confirm connection.
    Flowfinity - Leica high precision GPS

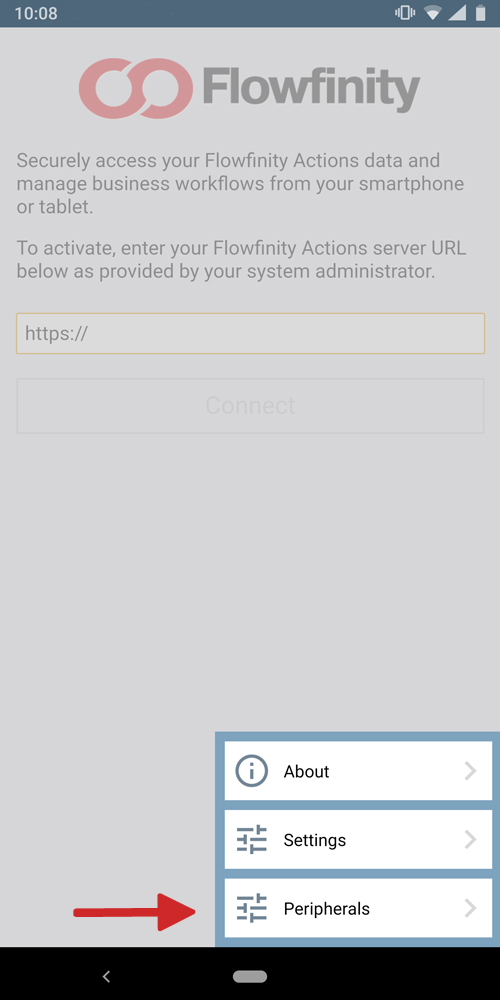

  14. Open the Flowfinity Actions app on your device and select 'Peripherals' from the login screen.
    Flowfinity - Leica high precision GPS

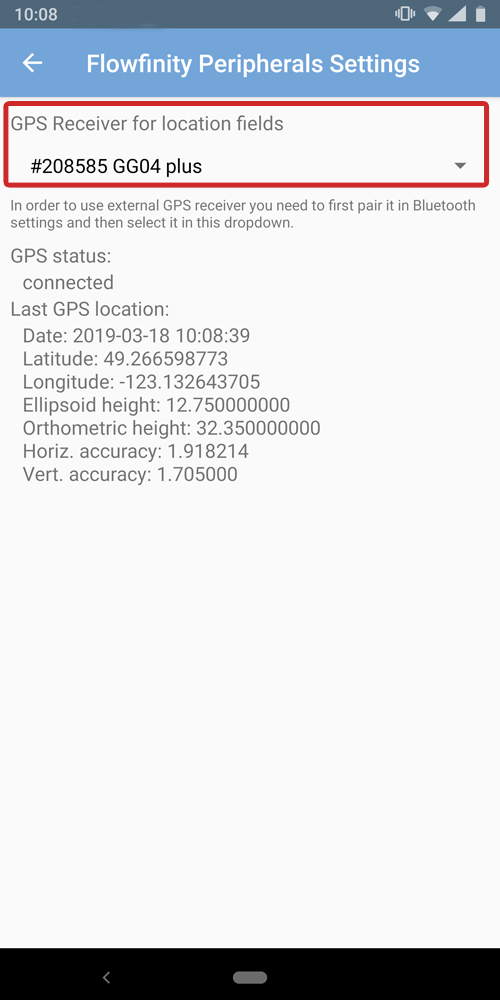

  15. Ensure that the GPS receiver for location fields is set to the external Leica equipment and that the Flowfinity app can see it is connected.
    Flowfinity - Leica high precision GPS
  16. Enter the app where the GPS Location Field was added, e.g. Work Orders.
    The Flowfinity app now collects high precision 3D GPS location info from your external antenna!
